Product Brief

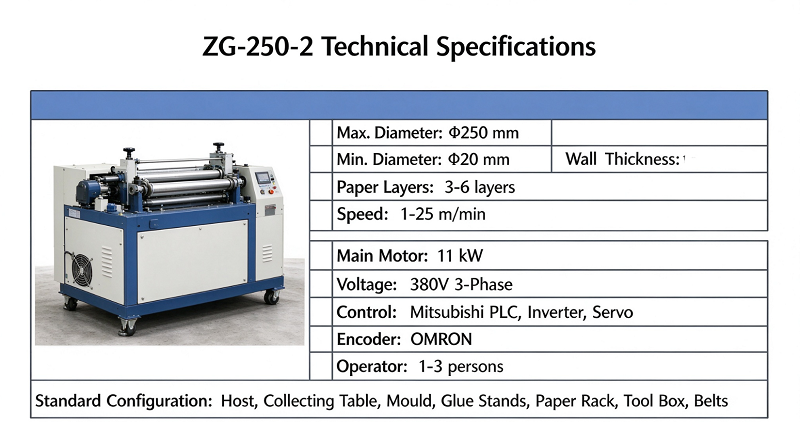

This automatic spiral paper tube machine adopts Mitsubishi PLC, servo drive and Omron encoder for stable operation. It supports 3-6 layers paper, tube diameter from 20mm to 250mm, speed up to 25m/min. Suitable for producing packaging paper cans and industrial paper cores.
Material
The main frame adopts thickened carbon steel plate with spray-painted anti-rust treatment. Key electrical components are imported brand including Mitsubishi PLC, inverter, servo motor and Omron encoder. Gluing parts use food grade stainless steel.
Technology

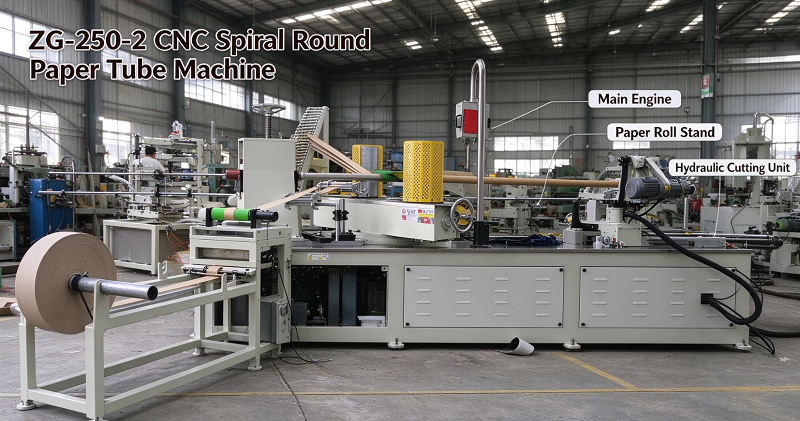

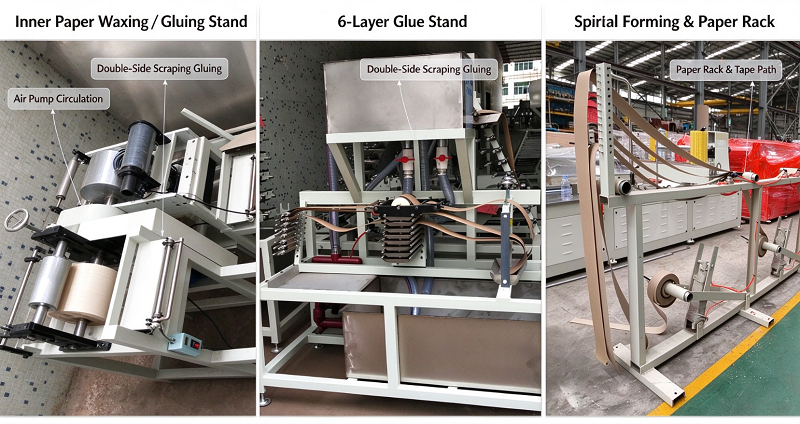

Adopts spiral winding forming process, equipped with double-side scraping gluing station and inner paper waxing station. Hydraulic cutting unit realizes fixed-length cutting automatically. Air pump circulation system ensures even glue coating. Servo constant-speed control keeps consistent tube wall thickness.
Product selling points
✅ Wide diameter range: 20mm-250mm, supports 3~6 layers paper winding
✅ Stable servo & PLC control, high cutting precision
✅ Max running speed 25m/min, high production efficiency
✅ Independent multi-layer gluing stand, uniform glue distribution
✅ Optional inner paper waxing function for waterproof paper tubes
✅ Low failure rate, easy operation, only 1-3 operators needed
Custom Services
Customized moulds for different tube diameters and wall thickness. Support waxing function upgrade, custom voltage configuration. We can adjust machine structure according to your paper material and production requirement.
Application Scenarios

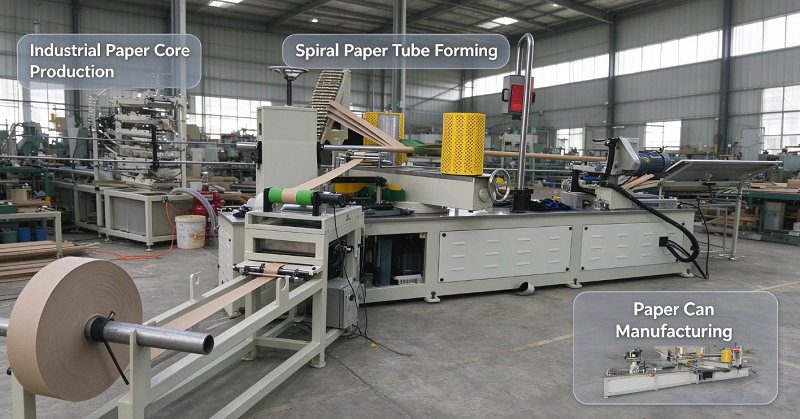

Produce packaging paper cans for coffee, spice, candle, dried food, gift packaging. Also for industrial paper cores used in film, fabric, tape rolling.
FAQS
Q1: What paper materials can this machine process?
A: It works with kraft paper, coated paper, waterproof wax paper and other paper rolls for paper tube production.
Q2: Can we make different wall thickness paper tubes?
A: Yes, wall thickness can be adjusted by changing paper layers and mould.
Q3: Is the machine voltage customizable?
A: Standard is 380V 3-phase, custom voltage is available upon request.
Q4: How many workers are needed to run this machine?
A: 1 to 3 persons for normal operation.
Q5: What after-sales support you provide?
A: We supply technical guide, operation manual and online technical support.
